Xuhui (Shandong) Intelligent Equipment Co., Ltd. is one of the leading manufacturers and suppliers of high precision rapid steel cage welding machine in China. If you're going to wholesale high quality high precision rapid steel cage welding machine made in China, welcome to get quotation from our factory. Customized orders are welcome.
In the field of automated rebar processing, CNC rebar cage rolling and welding machines hold a crucial position thanks to their unique technological advantages. Their well-matched features and configurations work together seamlessly, significantly boosting construction efficiency.
This high-precision, high-speed rebar cage welding machine is already widely used across the industry. As technology continues to advance, it will play an even greater role in more engineering applications, delivering more efficient and precise solutions for a wide range of construction projects.
Core Advantage
High-Efficiency Processing
Continuous operation combined with automatic feeding and welding linkage allows 15–20 rebar cages to be produced in an 8-hour shift-over three times the efficiency of manual processing-significantly shortening construction schedules.
Cost Reduction
The CNC system precisely controls stirrup winding. Compared with manual processing, material waste is greatly reduced, and this alone can save construction sites tens of thousands in costs each year.
High Precision
Main rebar spacing error ≤ 1 mm and cage diameter deviation within ±2 mm fully meet construction standards, with inspection pass rates exceeding 98%, effectively reducing rework costs.
Easy Operation
An intelligent interactive interface enables workers to become proficient after just three days of training; only four operators are required, compared with 8–10 in traditional methods, significantly cutting labor and management costs.

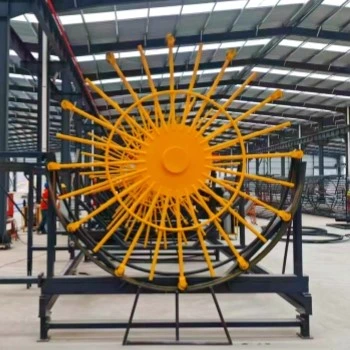

Products Display
Application Areas and Supporting Equipment
This equipment is widely used in large-scale projects such as major bridge construction and high-speed railway works.
The standard length of rebar cages is typically 12 meters, and custom lengths can also be produced to meet specific project requirements
In current industry practice, dedicated CO₂ shielded welding machines are commonly used as supporting equipment. They are easy to operate and learn, have a low failure rate, and can adapt well to various on-site working conditions. In addition, automatic welding robots (purchased separately) are available, enabling 3D automatic seam tracking with higher welding accuracy and fully meeting the demands of efficient on-site production.
Product Configuration
Equipped with a dedicated industrial-grade PLC controller, dual-end control panels, and a touch screen. The programs are simple and intuitive, making operation convenient, fast, and highly practical.
Divided into side A (fixed side) and side B (moving side). Both mechanisms are driven by servo motors and controlled by advanced frequency inverters. The traveling and rotation speeds can be adjusted steplessly, ensuring high rotational accuracy and uniform spacing of the rebar cages.
Supports both welding wire and welding rods. It comes standard with a dedicated CO₂ shielded welding machine, suitable for various on-site working conditions. Automatic welding robots can also be purchased separately according to production needs to meet higher efficiency and quality requirements.
The machine adopts 20CrMo high-manganese steel with quenching treatment, featuring anti-slip teeth and excellent wear and fatigue resistance. Compared with equipment from other manufacturers, it maintains stable precision even under high-intensity working conditions.
The complete machine is equipped with an automatic feeding rack and a main rebar support rack. The support rack has a load capacity of up to 2 tons, enabling seamless material flow from raw material loading to finished product unloading and significantly reducing process transfer time.
Through the precise matching of these technical configurations, this equipment effectively converts the advantages of automation into tangible construction efficiency, making it a core and highly practical solution for modern infrastructure projects.
FAQ
Q: What is the Service Commitment?
A: 1. We provide clients with a one-year warranty to ensure the machine works well. 2. We maintain a certain inventory level of spare parts, meaning replacements can be sent to you in a timely manner. 3. We offer every client a preferential quotation.
Q: What should I do if the machine has a problem?
A: We respond to emails and phone calls within 24 hours. If parts break due to non-human factors within 12 months, we offer free replacements. If the problem occurs after 12 months, the customer will be responsible for the freight both ways and the cost of replacement parts.
Q: How long is the warranty on your equipment?
A: Our standard warranty period is one year.
