CNC Steel Bar Shearing Production Line
Xuhui (Shandong) Intelligent Equipment Co., Ltd.
Xuhui (Shandong) Intelligent Equipment Co., Ltd. is an enterprise that integrates the research and development, production, and sales of CNC steel bar equipment. The company mainly engages in CNC steel bar bending and coiling machines, CNC steel bar bending centers, CNC steel bar cage rolling welding machines, and other CNC steel bar processing equipment. Our products are primarily used in projects such as expressways, high-speed railways, airports, power plants, large building complexes, standardized steel bar processing and distribution centers, as well as various bridge and tunnel steel bar processing plants.
Company Advantages
Xuhui (Shandong) Intelligent Equipment Co., Ltd., as a leading enterprise in the domestic CNC steel bar processing equipment field,driven by technological innovation, based on quality control, and oriented towards customer needs. It has demonstrated strong competitiveness and development potential in the wave of building industrialization and is a trustworthy partner in the field of construction equipment.
Outstanding capabilities in technological research and development as well as product innovation
Relying on regional industrial resource advantages, the company has established a full-chain technology research and development system. The equipment supports multi-specification steel bar storage and memory functions and can preset parameters to achieve batch processing of steel bars of different lengths and quantities, reducing manual intervention.
In the field of intelligent equipment, the company actively explores modular design and green manufacturing. The production line adopts a modular structure, which is convenient for maintenance and upgrading. The supporting intelligent warehousing system realizes automatic sorting and storage of materials. Combined with the concept of green manufacturing, it performs excellently in reducing energy consumption and material waste.
Well-established product quality and certification system
The company strictly adheres to international quality management standards and has been certified by the ISO9001 quality management system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system, ensuring the controllability of product quality throughout the entire life cycle. Its CNC steel bar processing equipment has also passed inspection by national authoritative institutions.
Social responsibility
development potential
sustainable development
customer resources
Product Introduction
CNC Steel Bar Shearing Production Line
The CNC steel bar shearing production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. is an automated device specially designed for construction projects, featuring high precision, high efficiency, and intelligence. This production line can automatically complete the processes of straightening, sizing, and shearing steel bars. Its hydraulic shearing system adopts a slanted blade design, providing high shearing force with low noise. It can simultaneously shear multiple reinforcing bars at once, significantly enhancing processing efficiency. The equipment also supports multi-specification steel bar storage and memory functions. By presetting parameters, it can achieve batch processing of steel bars of different lengths and quantities, reducing manual intervention. In addition, the modular design of the production line facilitates maintenance, and the intelligent warehousing system enables automatic sorting and storage of materials, helping to improve the standardization level of construction. This production line has passed ISO three-system certification and, aligned with the concept of green manufacturing, performs exceptionally well in reducing energy consumption and material waste. It is one of the core pieces of equipment for building industrialization.
Product Type
Xuhui (Shandong) Intelligent Equipment Co., Ltd.’s CNC steel bar shearing production line focuses on the three core goals of high precision, high efficiency, and intelligence, forming a diversified product range. As a leading enterprise in the construction equipment field, it continuously promotes the upgrading of construction industrialization toward intelligence and green development by relying on technological innovation, quality control, and full-cycle service capabilities.
01.

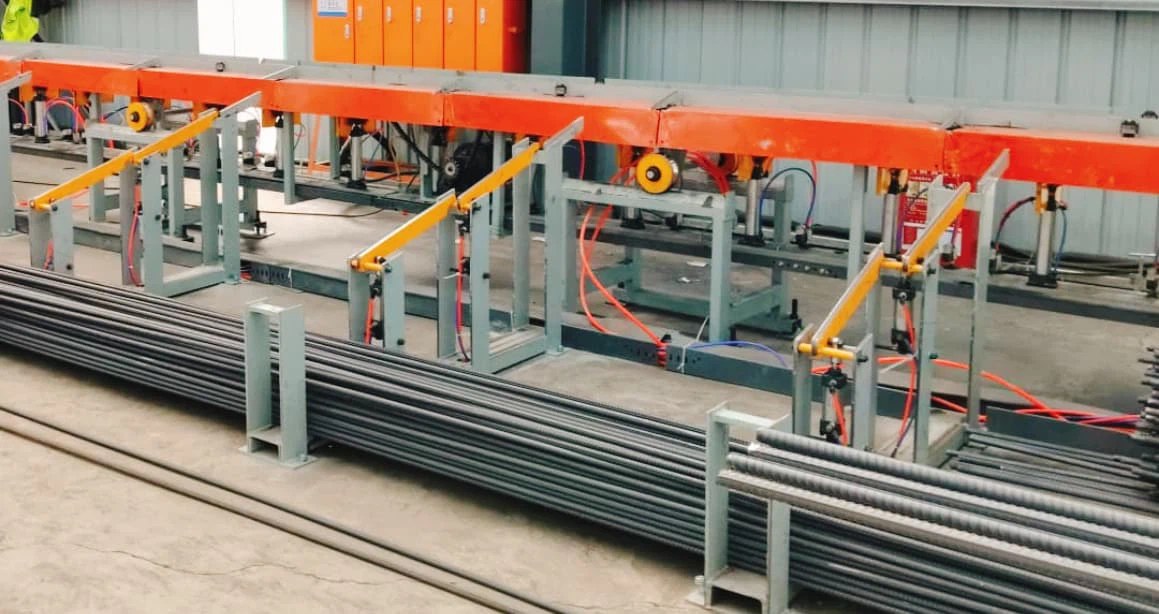

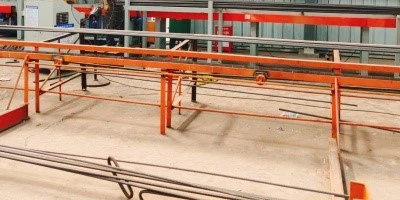

Standard CNC steel bar shearing production line
- Adopts an ultra-wide bevel blade design that is both scientific and labor-saving.
- The double-sided three-step storage rack can simultaneously store steel bars of multiple specifications. Combined with the servo control system, the length accuracy can reach ±2mm.
- Integrates an automatic waste collection function to reduce manual intervention.
02.

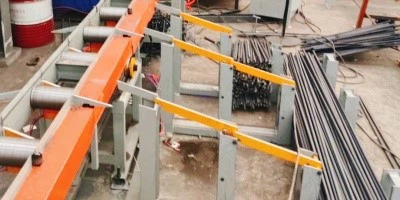

High-speed CNC steel bar shearing production line
- The shearing frequency reaches 20 times per minute. It adopts a mechanical multi-stage gear and flywheel structure, enabling fast steel bar cutting.
- The single-side chain-track discharging rack design is space-saving, convenient for material discharge, and easy to maintain.
03.

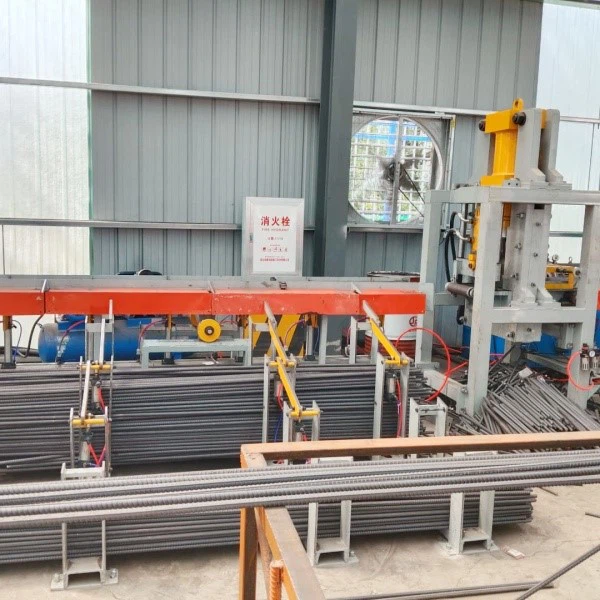

High-precision CNC steel bar shearing production line
- Hydraulic shearing ensures smooth cuts free of burrs.
- The fixed-length trolley achieves an accuracy of ±2mm through electronic measurement.
- The modular design allows easy expansion and integration with equipment such as bending and threading machines to form a fully automatic machining center.
04.

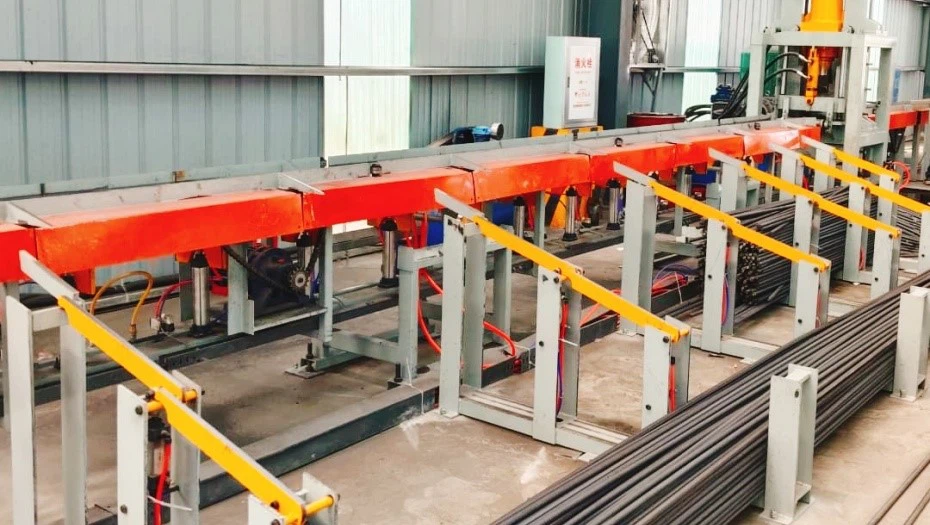

Economical CNC steel bar shearing production line
- Supports multi-specification steel bar storage and memory functions, enabling batch processing through preset parameters.
- Incorporates standardized steel bar processing concepts, supports modular combination and expansion, and delivers excellent cost performance.
05.
Intelligent integrated CNC steel bar shearing production line
- Integrates the entire process of straightening, sizing, shearing, and sorting, with remote monitoring and data analysis available through an industrial Internet platform, supporting real-time display.
- Equipped with an intelligent warehousing system that can automatically dispatch materials according to order requirements, enabling “unmanned” processing.
- Capable of predicting equipment failures and automatically generating maintenance work orders, thereby reducing downtime.
Product Features
CNC Steel Bar Shearing Production Line
The CNC steel bar shearing production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. takes technological innovation as its core driving force. Through high-precision processing, intelligent control, green energy-saving design, and full-cycle service, it provides efficient and reliable solutions for the industrialization of construction. The features of its products are reflected not only in hardware performance, but also in digital management and sustainable development concepts, promoting the upgrading of the construction equipment industry toward intelligence and green development, and making it the preferred equipment for projects.
High-precision processing capability
The hydraulic shearing system adopts a bevel blade design, ensuring uniform distribution of shearing force, smooth cut edges without burrs, and the ability to cut multiple reinforcing bars simultaneously, thus avoiding the tearing problems of traditional straight-edge blades. In addition, the equipment is equipped with an anti-jump clamping device. By applying stable pressure, it ensures that the steel bars do not shift during the shearing process, further enhancing cutting consistency.
High production efficiency
The high-speed shearing frequency reaches 20 times per minute. It adopts a mechanical multi-stage gear and flywheel structure, which allows fast cutting of steel bars. Combined with a servo motor-driven fixed-length trolley, it enables continuous operation. The equipment also supports multi-machine linkage, which can be integrated with CNC bending centers and threading machines to form fully automatic processing centers, achieving full-process automation of "shearing–bending–threading."
Intelligent control and digital management
Intelligent integrated molding covers the entire process of straightening, sizing, shearing, and sorting. It enables remote monitoring and data analysis through an industrial Internet platform, supports real-time display, predicts equipment failures, and automatically generates maintenance work orders, thereby reducing downtime. Some models are equipped with an AI visual inspection module to monitor shearing quality in real time. Processing data is automatically stored and quality reports are generated. It supports QR code traceability and meets the requirements of high-end projects such as nuclear power and high-speed rail.
Humanized structural design and reliability
The equipment adopts a modular design, allowing key components to be replaced quickly. The rail-mounted shearing mechanism can be moved to different storage areas, flexibly adapting to various processing requirements. Core components are made of high-strength alloy steel, and key processes utilize laser welding and precision grinding techniques.
Green energy conservation and sustainable development
During production, energy-saving motors and noise-reduction designs are adopted. The hydraulic system optimizes the oil circuit design to reduce pressure loss. An intelligent nesting algorithm helps customers save on steel costs each year. The equipment also integrates an automatic waste collection function, with a scrap steel recovery rate of over 95%, meeting circular economy requirements.
Wide applicability and customized services
The products cover a wide range of steel bar processing requirements, from standard models to economical types, and can be adapted to various scenarios. The company has established a nationwide after-sales service system, offering a one-year warranty and providing lifetime remote guidance services. In addition, it offers full-process solutions covering equipment selection, installation and commissioning, and personnel training. To date, it has served over 500 projects, with a customer repurchase rate exceeding 80%.
Product Advantages
The CNC steel bar shearing production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. takes “high precision, high efficiency, intelligence, and greenness” as its core strengths.
Relying on an imported PLC digital control system and servo drive technology, it achieves a fixed-length accuracy of ±1–2 mm. The ultra-wide inclined blade design combined with the hydraulic shearing system ensures smooth cuts without burrs. It can simultaneously shear multiple reinforcing bars without vibration or displacement. The high-speed equipment reaches a shearing frequency of up to 20 times per minute. The double-sided three-step storage rack supports mixed-flow processing of reinforcing bars, making it eight times more efficient than traditional manual processing. The intelligent nesting algorithm further increases the material utilization rate to 98%.
Through PLC control, AI visual inspection, and an industrial Internet platform, a full-process automation system is established, enabling remote monitoring of equipment status, fault prediction, and automatic generation of maintenance work orders. With its modular design, key components can be quickly replaced, extending the overall service life of the machine by more than 30% compared with the industry average. By adopting energy-saving motors and noise-reduction technology, the energy consumption per unit of output is 20% lower than the industry standard. The stainless steel pipeline transmission reduces compressed air loss. Moreover, with nationwide after-sales service, it offers a one-year warranty and provides lifetime remote guidance services, making it a core piece of efficient and reliable equipment for building industrialization.
Precautions for Use
The operation of the CNC steel bar shearing production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. must strictly follow standard operating procedures and adhere to the principle of "safety first, precise operation, and scientific maintenance." By strictly following installation standards, strengthening daily inspections, standardizing parameter settings, and implementing periodic maintenance, the performance of the equipment can be maximized, its service life extended, and both personnel safety and processing quality ensured. Operators are advised to regularly participate in the technical training provided by the manufacturer, familiarize themselves with the equipment characteristics, and refine the operation process in combination with the specific parameters in the User Manual to achieve efficient and sustainable production.
Equipment Installation and Foundation Conditions
Horizontal installation and stability
The equipment should be installed on a flat, solid concrete floor. Use a level to measure and adjust it to a horizontal position. When mobile equipment is in operation, the traveling wheels must be locked to prevent component displacement caused by vibration. If settlement or inclination of the foundation exceeds the allowable range, reinforcement measures should be taken promptly.
Electrical and grounding safety
Before startup, check whether the equipment is properly grounded. Regularly inspect power cables for damage and loose connections. Do not excessively squeeze or pull cables. Before use, ensure that the power supply voltage is stable to avoid damaging electrical components.
Comprehensive Inspection Before Operation
Safety protection system
Check whether safety devices such as guardrails, emergency stop buttons, and photoelectric sensors are in good condition. It is strictly prohibited to operate the equipment when any protective device is malfunctioning.
Mechanical and hydraulic systems
Blade condition: Check blade edge wear. If burrs exceed 0.5 mm, the blades must be ground or replaced. Adjust the gap between the upper and lower cutting knives to within 1 mm weekly to ensure shearing accuracy.
Hydraulic system: Before startup, confirm that the hydraulic oil level is within the indicated range. If the oil temperature is below 10℃, preheat it to above 20℃ before operation. Check pipeline sealing; pressure loss must not exceed 5% of the set value.
Transmission components: Manually rotate the pulley to check if gears mesh smoothly. Chain tension must meet the standard.
Lubrication and cleaning
Lubrication: Apply lithium-based grease to moving parts such as guide rails and lead screws every shift. Check the oil level of the reducer and hydraulic station weekly; replenish as needed.
Cleaning: Remove iron filings and dust from the surface and tracks to prevent them from entering the transmission system and affecting accuracy.
Core Norms in the Operation Process
Materials and parameter control
Steel bar specifications: Process strictly within the range marked on the equipment nameplate. The number of bars sheared at one time must comply with technical parameters. Overloading is strictly prohibited.
Parameter setting: After entering parameters such as length and shearing frequency, conduct three no-load test runs to confirm that positioning accuracy deviation is ≤±1 mm. Before processing, the first-piece inspection must pass, with a verticality error ≤0.5°.
Human-machine collaborative safety
Feeding operation: When feeding manually, never hold the feeding chain by hand; use special fixtures instead. When processing long steel bars, two operators must coordinate to align the bars with the shearing direction.
Personnel positioning: Operators must stand in the designated safe area on the side of the equipment, at least 1.5 m away from the shearing area. Non-operating personnel are prohibited within a 2-meter radius of the storage rack.
Exception handling
If abnormal sounds, vibrations, or alarms occur during operation, immediately press the emergency stop button to cut off the power supply, then check for faults. For example, a sudden drop in shearing frequency may be caused by hydraulic oil contamination, requiring inspection of oil cleanliness.
Emergency Response and Record Management
Fault response mechanism
In case of malfunction, immediately cut off the main power supply and contact after-sales service. Provide the equipment number, fault code, and on-site photos to the after-sales team.
Operation and maintenance records
Establish equipment operation files to record daily processing volume, fault codes, maintenance work, and replacement component models. For example, when replacing hydraulic oil, the record should include the time, oil quantity, and filter element model for traceability.
Maintenance and Upkeep
The maintenance and upkeep of the CNC steel bar shearing production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. should follow the full life-cycle management concept. Combined with the equipment characteristics and industry standards, a standardized process should be established covering daily inspection, periodic maintenance, key system maintenance, and the management of vulnerable parts. Preventive maintenance should be the main approach. By strictly implementing hierarchical maintenance standards, strengthening the monitoring of key systems, and standardizing the management of vulnerable parts, the service life of the equipment can be effectively prolonged. It is recommended to integrate the equipment’s Internet of Things system to monitor parameters such as oil temperature and vibration in real time, achieve predictive maintenance, and further enhance production efficiency and reliability.
Daily Maintenance (per shift/daily)
1. Equipment cleaning and basic inspection
Surface cleaning: Use a brush or industrial vacuum cleaner to remove iron filings and dust from the equipment surface, tracks, and transmission components to prevent them from entering the hydraulic system or affecting sensor accuracy.
Fastener inspection: Use a torque wrench to check key parts such as the blade-fixing bolts and motor base bolts, ensuring that the tightening torque meets standards and that the loosening rate does not exceed 5%.

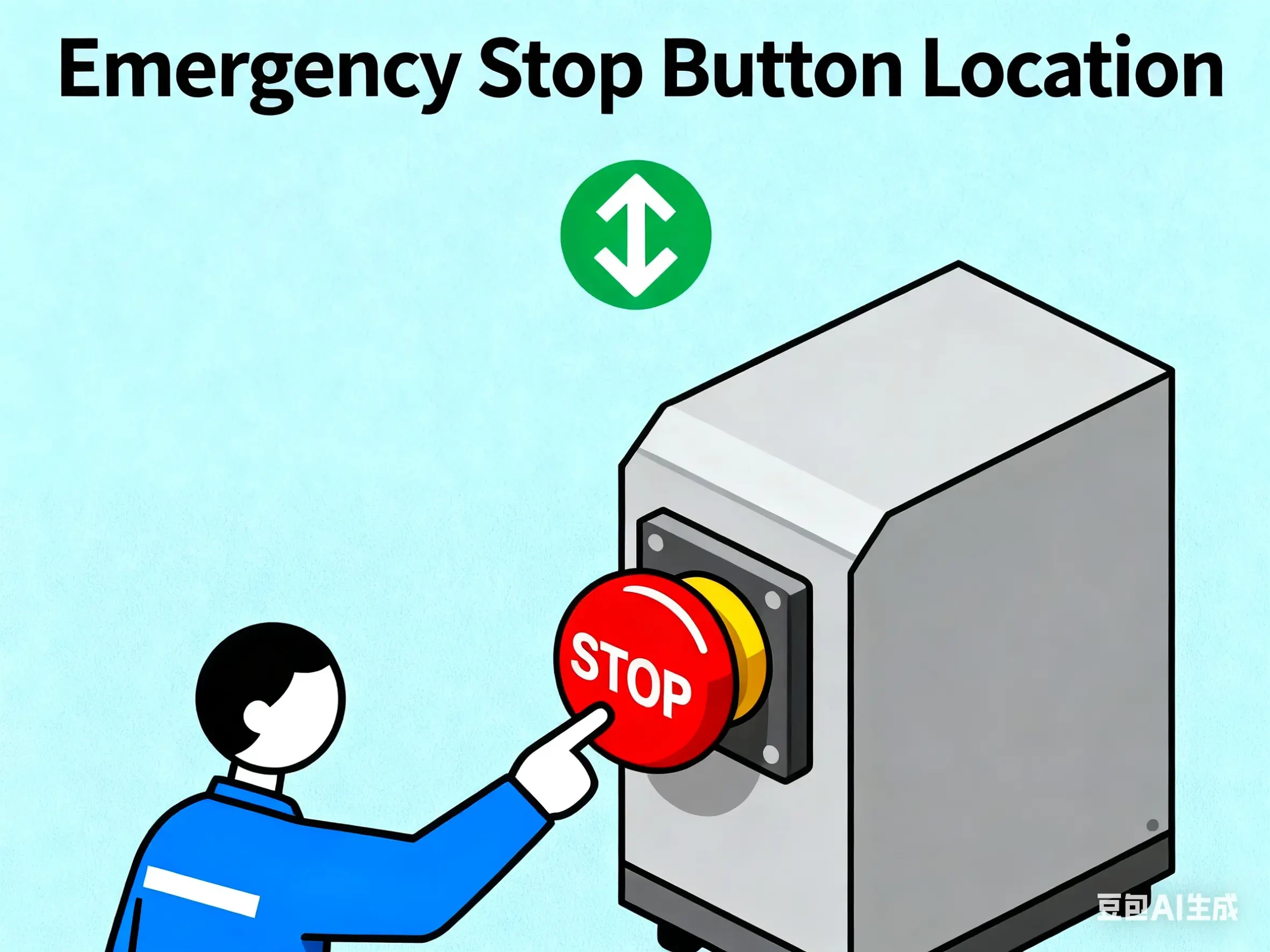

Safety device test: Press the emergency stop button three times to confirm that the response time is ≤0.5 seconds. Manually block the photoelectric sensor to verify the guardrail’s alarm function.
2. Maintenance of the lubrication system
Automatic oil injection pump: Check whether the external transparent oil pipe is properly supplying oil, and replenish the guide rail oil to the upper limit of the oil level every week.
Manual lubrication points: Use an oil gun to apply lithium-based grease to the eccentric shaft, copper slider, and other parts. Perform this twice per shift, injecting only enough grease so that a small amount overflows.
Weekly Maintenance
1. In-depth inspection of core components
Transmission chain: Check the tightness of the chain. If it is too loose, adjust the tensioner pulley or shorten the chain.
Sensor calibration: Use standard gauge blocks to verify the detection distance of the photoelectric sensor. Clean iron filings from the proximity switch surface to ensure stable signal transmission.
2. Electrical and control systems
Electrical cabinet cleaning: Use an anti-static brush to remove dust inside the cabinet, focusing on the contactor contacts and PLC module cooling vents to avoid short circuits.
Line fastening: After disconnecting the power supply, re-tighten the circuit breaker and motor terminals to ensure that the voltage drop is ≤2%.
Monthly Maintenance
1. Comprehensive maintenance of the hydraulic system
Oil detection: Use a portable oil tester to analyze hydraulic oil contamination. If it exceeds the standard, replace and clean the oil tank, and change the filter element.
Pressure test: Measure system pressure under no-load and full-load conditions. If deviation exceeds 5% of the set value, check the relief valve or oil pump for faults.
2. Mechanical accuracy calibration
Shearing accuracy: Process three standard-length reinforcing bars, then measure the cut’s verticality and length deviation. If beyond limits, adjust the limit switch of the fixed-length mechanism.
Transmission components: Check the meshing clearance of the reducer gears and measure pulley runout with a dial indicator.
3. Electrical component inspection
Insulation test: Use a megohmmeter to measure the insulation resistance of the motor winding, and check cable sheath wear. Wrap damaged areas with insulating tape or replace them.
PLC program verification: Simulate fault signals to test whether program logic responses meet design requirements.
Quarterly/Annual Maintenance
1. Deep maintenance and system upgrade
Hydraulic system overhaul: After 2,000 hours of operation, replace all hydraulic oil, clean cylinder pistons and seals, and replace aged O-rings.
Reducer maintenance: Disassemble and inspect the gearbox, clean out metal debris, check gear tooth wear, and replace bearings if necessary.
2. Overall machine performance testing
Load test: Run continuously for 2 hours under rated load, monitoring motor temperature rise, hydraulic oil temperature, and equipment vibration.
Safety interlock verification: Simulate scenarios such as guardrail opening and emergency stop activation. Confirm shutdown time is ≤0.3 seconds and alarms activate simultaneously.
How To Cooperate With Us
https://www.xuhuiintelligent.com/
Our address
Industrial Park, Hetaoyuan Town, Juye County, Heze City, Shandong Province, China
Phone Number
+44 7514 711055, 155-5443-5355
yue@xuhuijx.com
FAQ
Q: There is always a deviation in the length of the processed steel bars. How can this be solved?
A: First, check if the fixed-length baffle is locked tightly. If deviations occur, follow these two steps: ① Calibrate the levelness of the equipment with a level (the inclination of the foundation will affect the accuracy). ② Enter the parameter interface through the touch screen and recalibrate the servo positioning with a standard gauge block (it is recommended to cut three pieces for verification after calibration). Remember to keep the track clean daily, as the accumulation of iron filings can also cause inaccurate positioning.
Q: What could be the reason for the occasional inability to cut through, or the uneven cut when cutting?
A: Don’t worry. This is usually caused by blade clearance or parameter settings. First, check the gap between the upper and lower blades and adjust it to 0.5–1 mm (special attention should be paid to the inclined blade design). If the wear is severe, it is recommended to replace the original alloy steel blade. ② If cutting hard steel, the maximum shearing pressure can be increased on the touch screen. The number of bars sheared at one time should not exceed the upper limit marked on the equipment.
Q: What should I do if the equipment suddenly alarms and stops, and the screen shows a fault code?
A: Press the emergency stop button immediately. The most common alarms are: ① “E01” servo fault: After powering off for 3 minutes, restart and check if the cable is loose. ② “E05” hydraulic anomaly: Check if the oil level is within the marked range. If the oil temperature is too high, stop the machine for cooling. ③ For other codes, refer to the “Alarm Comparison Table” in the manual.
Q: How often should the equipment be maintained? What should be noted in daily use?
A: Daily maintenance is very simple. ① Before starting each shift, clean the tracks and apply lithium-based grease to the transmission chains. ② Check the hydraulic oil filter element every week and drain the accumulated water from the air storage tank. ③ Calibrate the fixed-length accuracy once a month.
Q: Our construction site has many specifications of steel bars. Can we process steel bars of different diameters simultaneously?
A: Yes, you can. Our double-sided storage racks can hold multiple specifications simultaneously. When switching, simply select the “Mixed Flow Mode” on the touch screen. It is recommended to group by diameter before processing. Thick steel bars should be placed on the lower layer of the material rack (for better load-bearing capacity), and thin steel bars on the upper layer. This way, transportation will be smoother.
Q: Can the extended material rack be customized?
A: If you need an extended material rack, please inform us in advance. We support modular customization and will follow up from design to installation to ensure it meets the requirements of the construction site.
Xuhui (Shandong) Intelligent Equipment Co., Ltd. is one of the most professional cnc steel bar shearing production line manufacturers and suppliers in China. Please feel free to wholesale high quality machines made in China here and get quotation from our factory. Contact us for customized service.
CNC Steel Bar Shearing Production Line, Intelligent Steel Cutting Center, Steel Bar Cutting Machine
