Xuhui (Shandong) Intelligent Equipment Co., Ltd. is one of the leading manufacturers and suppliers of servo-driven steel cage machine in China. If you're going to wholesale high quality servo-driven steel cage machine made in China, welcome to get quotation from our factory. Customized orders are welcome.
As a new generation of intelligent rebar processing equipment, this machine can be easily operated by just one person, boosting work efficiency by several times.
This servo-driven rebar cage forming machine integrates mechanical automation with digital control technology, completely transforming traditional rebar cage manufacturing methods and making the process more efficient, reliable, and hassle-free.
Product Workflow
- Main Rebar Fixing: According to the design requirements, multiple main rebars are threaded through the corresponding template holes on the front fixed rotary plate and the rear movable rotary plate, either manually or with mechanical assistance, and then clamped securely in place.
- Spiral Rebar Positioning: One end of the spiral rebar is welded firmly or directly fixed onto one of the main rebars.
- Winding and Welding: When the machine starts, the fixed and movable rotary plates rotate together. As the movable rotary plate rotates, it gradually moves backward, allowing the spiral rebar to wind evenly around the main rebars. Simultaneously, the machine uses CO₂ shielding welding or resistance welding to automatically weld each intersection between the spiral and main rebars, ensuring a strong and stable connection.
- Forming and Unloading: As the movable plate continues to rotate and move backward, the rebar cage gradually takes shape. Once it reaches the preset length, the machine stops automatically, and the finished rebar cage can be unloaded directly via a conveyor or robotic arm. The entire process is precisely controlled by the CNC system. By adjusting the rotation speeds of the two plates and the backward movement speed of the movable plate, the spacing of the spiral rebars can be perfectly controlled, producing high-precision, high-quality rebar cages.

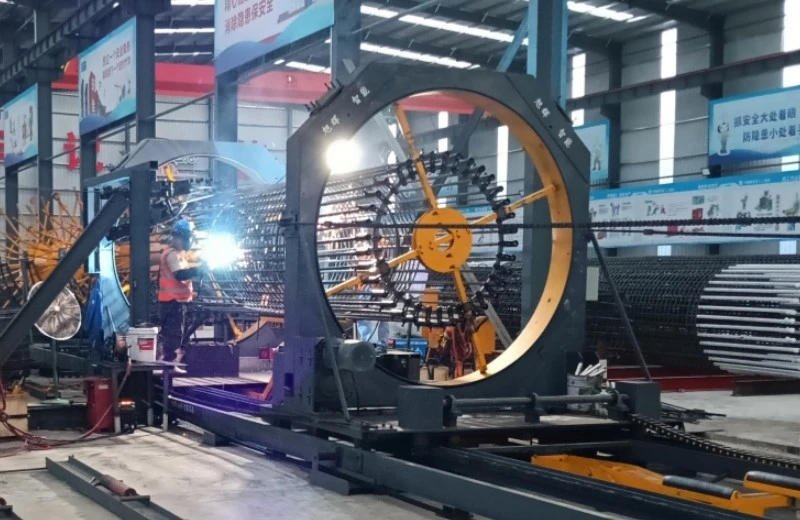

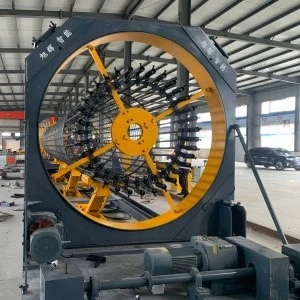

Products Display
Environmental Friendliness of the Product
This equipment is a genuinely eco-friendly helper on construction sites, reducing emissions, lowering noise, and saving resources, making green construction truly effective:
Take tunnel projects as an example-thanks to the machine's automated processing, for every kilometer constructed, about 3 tons of welding waste can be avoided, significantly reducing the impact of construction debris on the surrounding environment.
The operating noise of the equipment is also reduced by up to 45 decibels, so workers on-site are not exposed to excessive noise, and nearby residents are less disturbed, making construction much quieter.
Additionally, the steel scrap generated during processing can be recycled at a rate exceeding 98%, almost completely reusing leftover steel bars with minimal waste, ensuring that construction materials are fully utilized and truly environmentally responsible.
The servo-driven rebar cage forming machine produces welded rebar cages with highly consistent weld quality and impressive efficiency, making it almost essential for modern construction projects. If your project requires uniformly made rebar cages, tight deadlines, or batch production of different cage specifications, this machine is a sure bet-it reliably boosts construction efficiency and is an ideal choice for improving workflow on-site.
