Xuhui (Shandong) Intelligent Equipment Co., Ltd. is one of the leading manufacturers and suppliers of intelligent advanced steel bar bending machine in China. If you're going to wholesale high quality intelligent advanced steel bar bending machine made in China, welcome to get quotation from our factory. Customized orders are welcome.
Product Introduction
The CNC steel bar bending and hooping machine is an integrated equipment that combines straightening, length cutting, bending and hooping in one process. It is mainly used for steel bar processing in construction projects.
The machine features easy operation, labor saving and adjustable working speed, allowing the entire process to be completed by just one operator.
Whether used on construction sites or in large‑scale steel processing plants, it is your efficient and reliable production partner.
Product Advantages
High Automation Easy OperationFully automatic integration of steel bar straightening, feeding, bending, cutting and forming. Simple parameter setting on touch screen, no professional workers required, easy to learn and operate.
High Precision Stable PerformanceAdopts servo control system to ensure high bending accuracy and stable angle. Effectively reduces errors and guarantees consistent quality of stirrups.
High Efficiency Labor SavingGreatly improves processing efficiency compared with traditional manual bending. One machine can replace multiple workers, significantly reducing labor cost and workload.
Durable Structure Long Service LifeHigh-strength steel structure and wearing parts, stable operation, low failure rate, strong durability, suitable for long-term heavy-duty work.
Safe ReliableEquipped with full-protection safety device and emergency stop function, effectively ensuring operator safety during production.
Product Parameters
|
|
XHWG-12 |
XHWG-16 |
|
The processing diameter of a single reinforcing bar |
5-14mm Grade three rebar |
5-16mm Grade three rebar |
|
Processing diameter of double reinforcing bars |
5-10mm Coil bar |
5-10mm Coil bar |
|
The range of the side lengths of stirrups |
60-1200mm |
60-1200mm |
|
Bending Angle |
0-180° |
0-180° |
|
Maximum traction speed, feeding speed |
80-110m/min |
80-110m/min |
|
Maximum bending speed |
1100°/sec |
1100°/sec |
|
Length accuracy |
±1mm |
±1mm |
|
Angular accuracy |
±1° |
±1° |
|
The number of facets of the cutter used |
Four sides |
Four sides |
|
Maximum production capacity of a single line |
2000 / hour (standard stirrups) |
2000 / hour (standard stirrups) |
|
The maximum production capacity of the dual-line |
3500 / hour (standard stirrups) |
3500 / hour (standard stirrups) |
|
Rated total power |
36kw |
44.5kw |
|
Output (average) |
1 tons / hours |
1 tons / hours |
|
Working environment temperature |
-5℃~40℃ |
-5℃~40℃ |
|
Overall machine quality |
1800KG |
3000KG |
|
External dimensions |
3690(L)×1200(W)×2200mm(H) |
3690(L)×1200(W)×2200mm(H) |
|
Straightening system (2 sets) |
Horizontal and vertical bidirectional straightening, upgraded technology, convenient and fast adjustment |
Horizontal and vertical bidirectional straightening, upgraded technology, convenient and fast adjustment |
|
Mainframe(1 sets) |
Derived from advanced European technology and combined with four years of domestic practical experience, it has been continuously improved and perfected |
Derived from advanced European technology and combined with four years of domestic practical experience, it has been continuously improved and perfected |
|
Electrical control system(1 sets) |
International top brand industrial control system, stable performance and simple operation |
International top brand industrial control system, stable performance and simple operation |

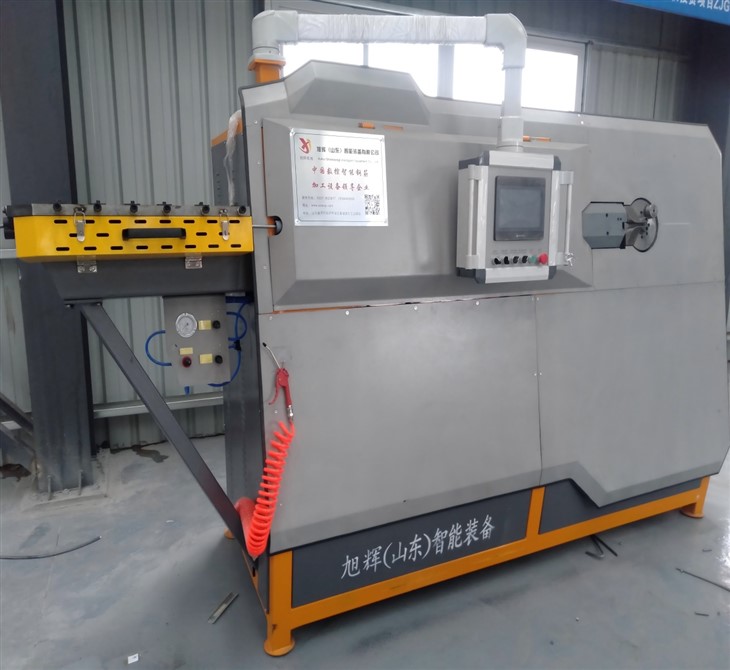

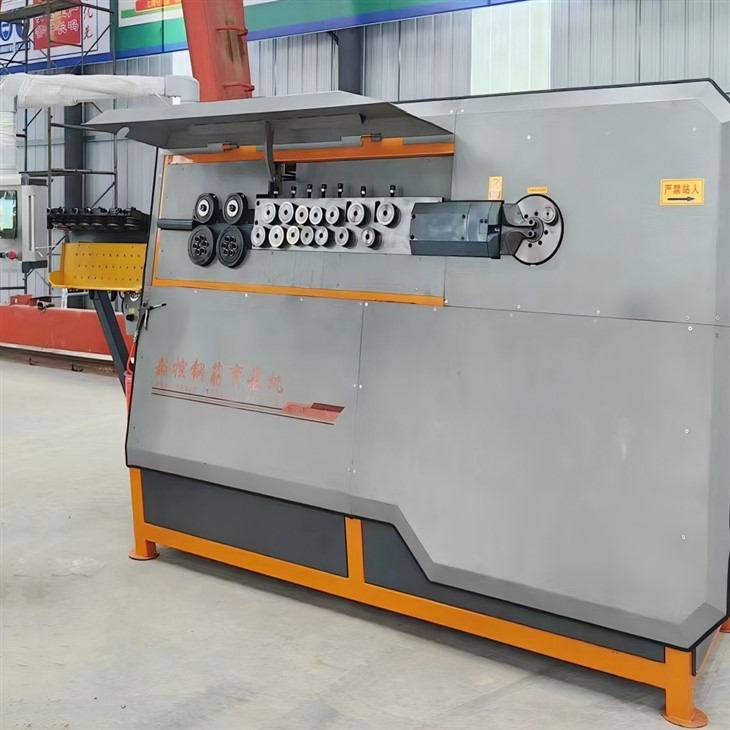

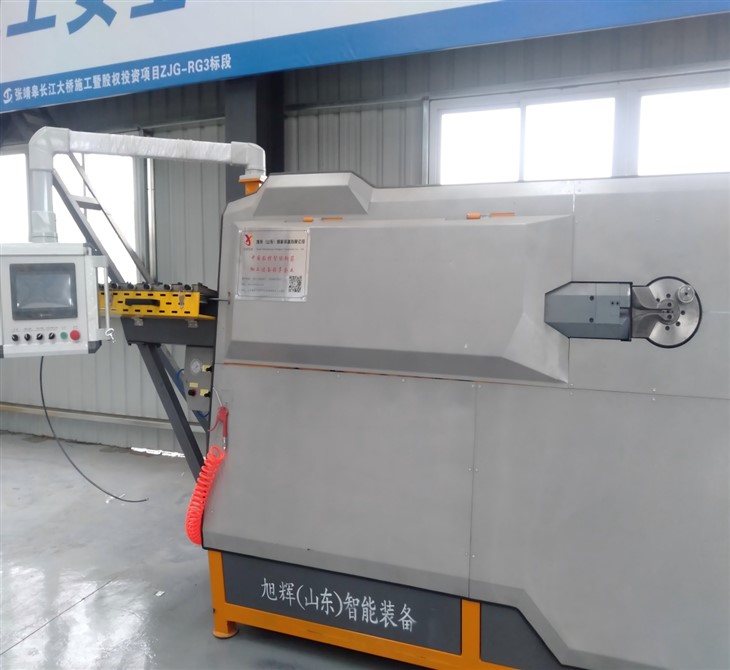

Equipment photos and finished product images
Scope of Application
Building construction
Steel reinforcement for residential, office, and commercial buildings. We can produce stirrups, connecting bars, and steel bars of various shapes and specifications according to requirements.
Luqiao
Bridge Construction: Applicable for processing reinforcing bars in key structural components such as bridge piers, abutments, and beams-including bent bars and stirrups.
Steel bar processing factory
Steel Bar Processing Plants: Ideal for professional processing facilities using the 4-16 CNC steel bar bending and coiling machine for batch production. Enhances efficiency and quality, and supports multiple construction projects.
Energy saving consumption
Adopts high-efficiency servo motor and intelligent power control system, effectively reducing energy consumption.
Low power consumption per ton of steel bar processed, more economical for long-term production.
Stable operation with low noise and less energy waste, realizing high efficiency and energy saving at the same time.
Environmentally friendly and cost-effective, helping users save a lot on electricity bills.
