Equipment Overview

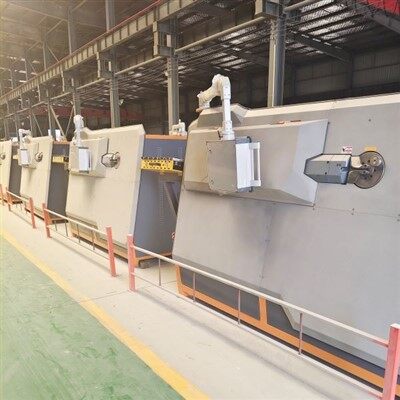

This Shandong Xuhui GW50 CNC steel bar bending machine is precisely controlled by a CNC system. It can process steel bars with a diameter of up to 40 millimeters, offering high efficiency and continuous operation without interruption. With just the press of a button, the entire process-straightening, length adjustment, bending into a circle, and cutting off-can be completed easily, without the need for manual supervision. Additionally, irregularly shaped coils can be processed with flexibility, fully meeting the various demands of construction sites. This machine is specially designed for construction sites and serves as a reliable automation assistant.
Mechanical Structure
- Feeding Mechanism:
Driven by a servo motor and a roller system. Once the steel bars are clamped, they are pushed to the precise length you set, with an accuracy of ±1 millimeter-extremely precise.
- Elbow:
Equipped with double turntables or multi-station tool rests, driven by hydraulic or servo motors. It can bend steel bars at any angle from 0° to 180°, meeting all your bending requirements.
- Control System:
This uses a PLC or CNC control panel. You can preset parameters such as stirrup size and bending sequence, and save the program for later use-extremely convenient.
- Shearing Device (Optional):
Some models are equipped with a hydraulic shearing machine that can automatically shear the steel bars without manual operation.
This is a simple, fully automatic process: First, the straightened steel bars are sent into the feeding mechanism → the machine conveys them to the predetermined length → the bending head bends them to the required angle → finally, the completed stirrups are automatically discharged.
Technical Features and Advantages
- High Efficiency
The processing speed can reach 15 to 20 cycles per minute (for φ10mm steel bars), which is 10 times faster than the traditional manual method.
It supports continuous operation without interruption and is suitable for large-scale and standardized stirrup production.
- Versatility
Multi-shape capability: Capable of producing various standard shapes; some models also support custom irregular components.
It is compatible with different types of steel bars, meeting the needs of most construction projects.
- Energy Conservation and Environmental Protection
Compared with traditional hydraulic models, the energy consumption of the servo motor drive system is reduced by 30%.
The working noise is ≤75 dB, fully complying with environmental protection standards.
Technical Parameters
|
Model |
GW50
|
|
Applicable to steel bar diameter |
≤36mm round steel ≤40mm threaded steel
|
|
power of motor |
4KW
|
|
Voltage |
380V
|
|
Weight |
365KG
|
|
Size |
1000*760*780mm
|
Key Points for Selection and Maintenance
Our Model 50 Rebar Bender has completely transformed traditional rebar processing with advanced automation - it's now an essential tool for modern construction projects.
However, here are two key points to keep in mind: first, always choose the right model that matches your specific project requirements; second, adhere to standard operating procedures at all times. That's the best way to maximize the machine's service life.
- Let me give you some practical selection tips:
Choose the motor power based on the rebar strength grade, such as HRB400 or HRB500. For high-strength rebars, select a machine with higher torque - it'll handle the tough work much more smoothly.
Prioritize models equipped with an automatic lubrication system and fault diagnosis function. Trust me, these features will save you a lot of hassle during daily use.
- Maintenance and upkeep
Check the hydraulic oil level and the lubrication status of the transmission parts every day before operation.
Calibrate the bending angle sensor regularly, and be sure to clean up iron chips and debris on the machine frequently.
Shandong Xuhui Intelligent Equipment Co., Ltd. is a seasoned manufacturer with many years of industry experience and over 10 years of expertise in serving global customers. We can tailor a customized solution based on your specific production needs. Want to know more about the details of our cooperation? Feel free to check the contact information below. We sincerely look forward to collaborating with you and becoming a reliable long-term partner
