Rebar processing technology is advancing faster than ever. Our high-efficiency CNC sawing, thread processing, and grinding production line, combining precision CNC technology with powerful performance, has long become a core, high-performance asset for industrialized construction.
By deeply integrating digital control with mechanical processing, it not only provides a more efficient and stable solution for rebar processing, but also raises the industry standard for quality and efficiency.
Working Principle
Although the workflow of this CNC high-efficiency rebar processing line may appear complex, in actual operation it runs step by step in a smooth, efficient, and well-organized manner:
1. Precise Positioning First, the positioning system securely fixes the rebar in place, ensuring that the cutting point is accurate down to the smallest detail.
2. On-Demand Cutting Next, the cutting tool follows preset parameters to cut the rebar to the required length.
3. Automatic Thread Rolling The cut rebar is automatically transferred to the threading unit, where the machine performs automatic clamping and feeding to complete the thread processing.
4. Final Polishing Finally, the polishing unit smooths and finishes the threaded rebar ends, ensuring a clean, flat surface and higher overall quality.
The entire process is precisely controlled by the CNC system, eliminating the need for constant manual supervision and truly achieving efficient, accurate, and automated production.

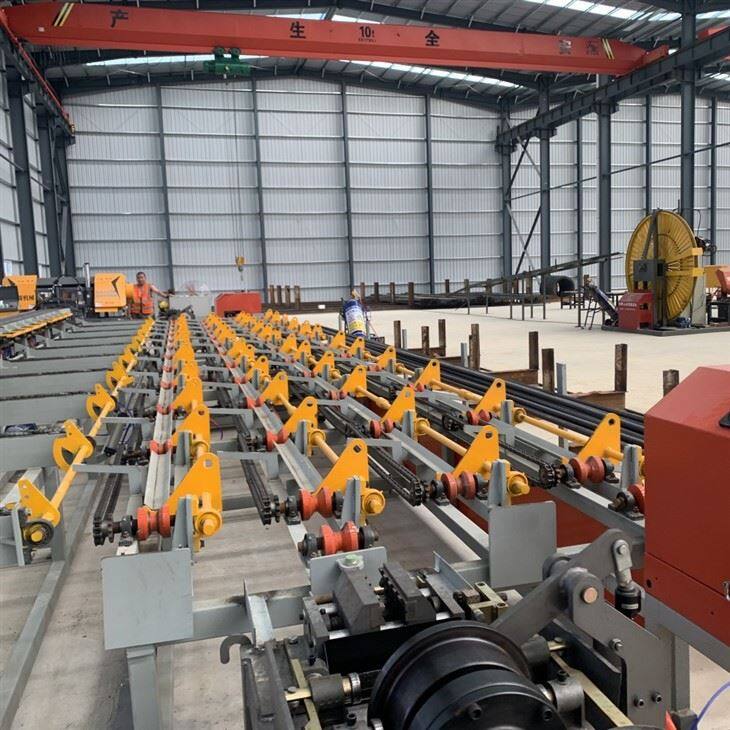

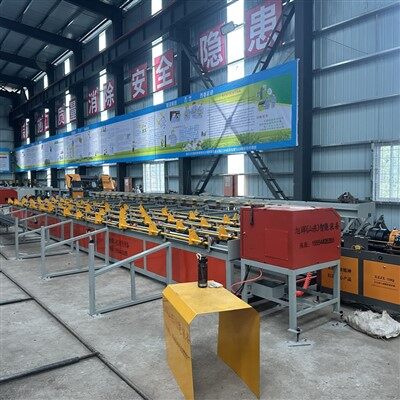

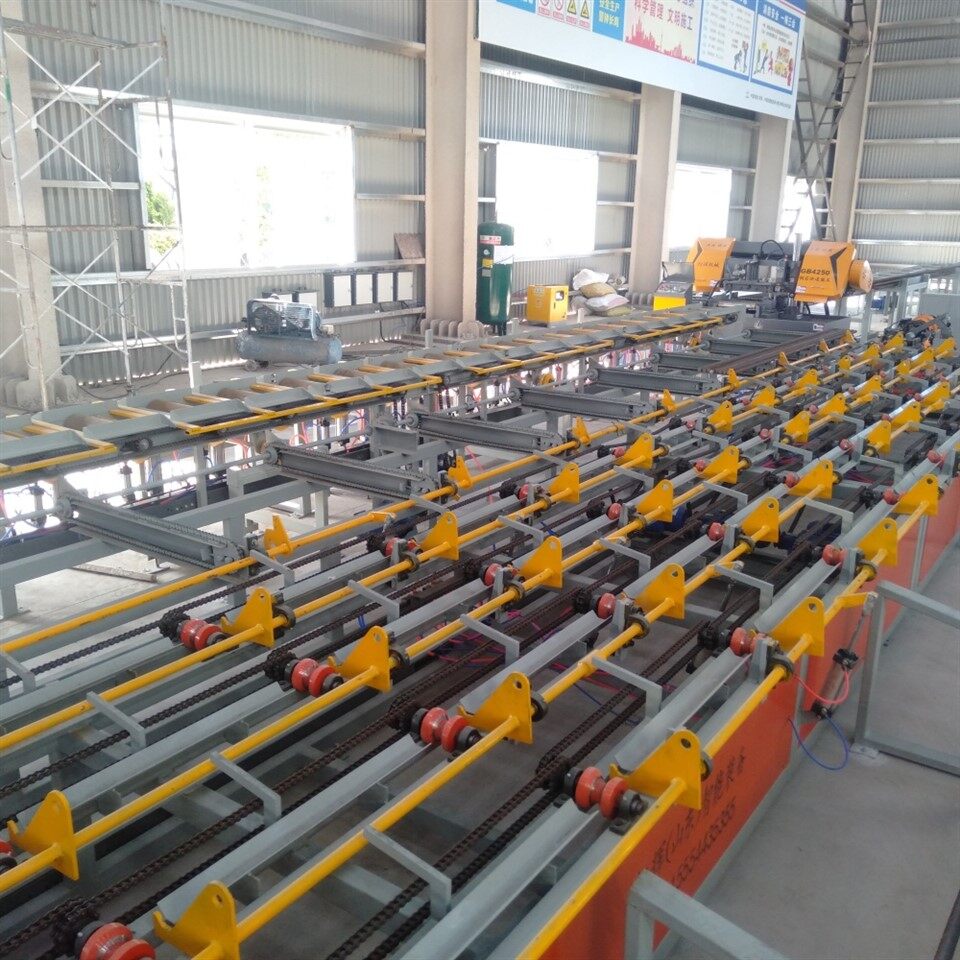

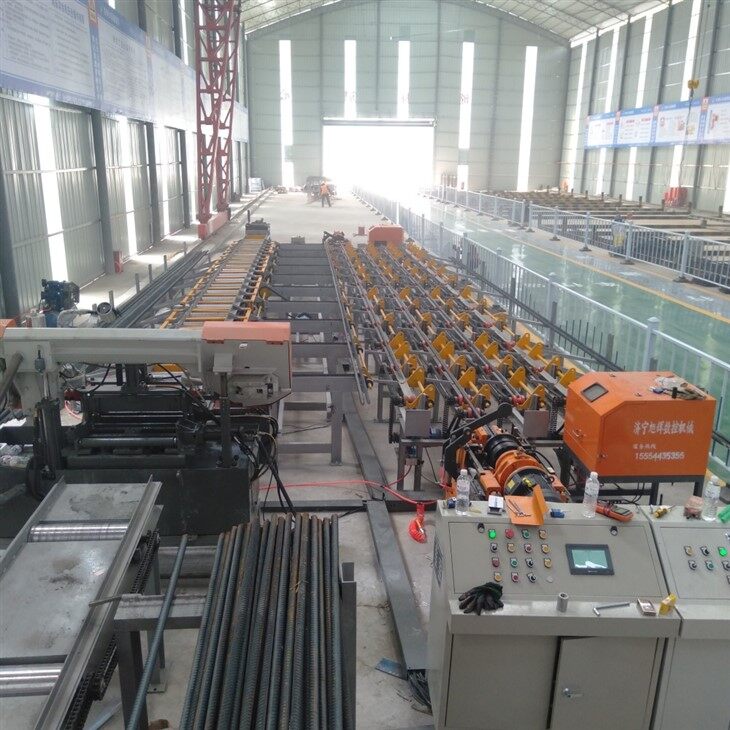

Product Display
Equipment Configuration
1. Pre-saw conveying track
2. Sawing main unit
3. Post-saw conveying and unloading track
4. No. 1 delivery platform
5. No. 1 feeding roller conveyor
6. No. 2 delivery platform
7. No. 2 feeding roller conveyor
8. No. 1 thread threading machine
9. No. 2 thread threading machine
10. Finished threaded product storage chute
11. Sawing surplus material storage tank
12. Electrical control cabinet and operation cabinet
Equipment Configuration
CNC servo saw cuts any length with high-precision PLC control.
Reserved dual-side automatic material flipping function and threaded product platform.
Supports up to 2 tons, improving efficiency and reducing labor intensity.
The saw blade uses AMD material with high-frequency quenching, offering a long service life.
| Component Names | Core Configuration & Advantages |
| Main Rebar Feeding Mechanism | Main rebar loading rack with a load capacity of up to 2 tons, improving processing efficiency while reducing labor intensity. |
| Pre-Saw Automatic Conveying Mechanism | The rebar requires no manual handling and is automatically conveyed to the next process by chain rollers. |
| CNC Hydraulic Saw | Equipped with servo automatic length positioning** and hydraulic automatic clamping/feeding, combined with PLC digital control for higher processing accuracy. |
| Post-Saw Automatic Conveying Mechanism | The rebar requires no manual handling and is automatically conveyed to the next process by chain rollers. |
| Dual-Side Automatic Material Flipping Mechanism | Composed of multiple pneumatic support units to realize automatic rebar flipping, making operation more labor-saving. |
| Threaded Product Platform | Load capacity up to 2 tons, enhancing finished rebar turnover efficiency while reducing workers' physical workload. |
| Electrical Control System | Powered by a branded PLC control system with dual-end control panels for more convenient on-site operation. |
This CNC high-efficiency rebar processing line, with its solid technology, efficient workflow, and adaptability to various scenarios, is gradually becoming an indispensable piece of equipment in the construction industry.
It not only processes rebar quickly and accurately, but also brings the advantages of intelligent management and environmentally friendly design. Looking ahead, we have every reason to believe it will continue to enhance construction quality and production efficiency, contributing steadily to the development of the construction sector.
As the construction industry moves increasingly toward industrialization, this production line serves as a key tool for upgrading the rebar processing sector, helping take both building quality and construction efficiency to the next level!
