In modern infrastructure projects, the processing quality and production efficiency of rebar components directly affect overall construction progress. Traditional rebar processing often relies on multiple standalone machines to complete different operations, resulting in fragmented processes and high labor requirements. This makes it difficult to maintain consistent processing accuracy and production efficiency.
As intelligent construction becomes increasingly adopted in the global engineering industry, integrated CNC rebar processing equipment has become an important trend in the industry. Xuhui (Shandong) Intelligent Equipment Co., Ltd. focuses on the development and manufacturing of rebar processing equipment and has developed a CNC rebar straightening, cutting, and bending machine that integrates multiple processing operations into a single machine.
The equipment provides an integrated solution for rebar processing plants, precast component factories, and on-site processing centers both in China and overseas.
Products Description

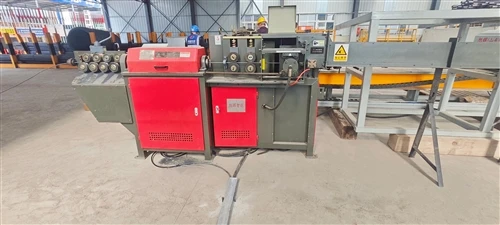

The CNC rebar straightening, cutting, and bending machine is designed for the automated processing of round steel bars. It integrates multiple functions, including feeding, straightening, fixed-length cutting, bending, and automatic counting, into a single machine.
Using round steel bars as raw materials, the machine automatically and continuously completes the entire processing cycle after feeding, eliminating the need for intermediate handling or transfer of workpieces. A single feeding operation can directly produce formed stirrups and specially shaped bent components.
The machine is equipped with a PLC programmable control system and servo drive system. High-precision encoders provide real-time length measurement and positioning feedback. Operators can set parameters such as rebar diameter, processing length, bending angle, and bending pattern through the touchscreen human-machine interface (HMI).
The system includes a library of commonly used stirrup templates for engineering applications. Rectangular, diamond-shaped, and polygonal stirrup patterns can be selected with a single click. It also supports customized input of special-shaped designs, allowing product specifications to be switched within minutes.
The machine features a heavy-duty welded steel-plate structure and undergoes stress-relief treatment to improve structural stability. It is designed for long-term operation in dusty construction-site environments and can support continuous production.
The cutting module uses alloy cutting tools to produce clean cuts with minimal burrs, helping ensure consistent rebar processing quality. The machine supports multiple language interfaces and can be configured with different power options. It can also be supplied with CE certification to meet applicable requirements for overseas markets.
Product core advantages
Traditional stirrup production requires at least three separate machines: a straightening machine, a cutting machine, and a bending machine. These machines also require dedicated space for material transfer between each processing stage, resulting in high floor-space requirements.
The Xuhui CNC rebar straightening, cutting, and bending machine integrates all three processes into a single machine, eliminating the need for multiple standalone machines. This significantly reduces the required floor space and labor requirements while simplifying the overall production process.
The machine is particularly suitable for temporary processing workshops at construction sites with limited space, as well as small-scale rebar processing and distribution centers. By integrating multiple processes into one machine, it can help reduce facility and labor costs while improving space utilization.
With servo-driven feeding and high-precision length measurement, the fixed-length cutting error is controlled within ±1 mm, while the bending angle error is controlled within ±0.5°. The machine delivers highly consistent dimensions across batches of rebar, helping minimize defective products and material waste.
This high level of processing accuracy and consistency helps meet stringent quality and acceptance requirements for rebar used in bridges, pile foundations, and precast concrete components.
Traditional production setups using separate machines typically require 3 to 5 operators to handle tasks such as material loading, transfer, bending, and sorting. With the CNC rebar straightening, cutting, and bending machine, a single operator can manage the entire production process.
The machine can process thousands of stirrups in an 8-hour shift, with overall production efficiency more than 50% higher than that of traditional setups using separate machines. In overseas markets where labor costs continue to rise, the machine can significantly reduce labor requirements and provide substantial long-term cost advantages.
The equipment features an integrated design with key components centrally arranged, making daily maintenance, fault diagnosis, and spare parts procurement simpler than with systems using multiple standalone machines.
By integrating multiple processing functions into a single machine, the system reduces the dependence on multiple machines operating together and helps minimize the impact of individual equipment failures on overall production. This improves operational stability and helps maintain consistent production schedules for rebar processing plants.
The equipment features a multilingual touchscreen interface and is easy to operate, allowing operators to become familiar with the system quickly. It can also be configured to meet the rebar processing requirements and applicable standards of different markets.
The machine can be integrated with rebar cage rolling welding machines, rebar sawing and threading production lines, and other equipment to create a complete rebar processing system, providing flexible solutions for different project requirements.
Product Application
The CNC rebar straightening, cutting, and bending machine is mainly designed for processing round steel bars and can produce various small rebar components, including rectangular stirrups, diamond-shaped stirrups, polygonal stirrups, and specially shaped bent bars. It is widely used in construction applications such as residential buildings, highways, railways, subway tunnels, municipal pipelines, photovoltaic pile foundations, and small and medium-sized bridges. Target customers include precast component factories, rebar processing and distribution centers, engineering contractors, and on-site rebar processing workshops.
For large-scale projects, many customers combine this integrated machine with a steel cage rolling welding machine. A single processing workshop can therefore produce steel cages, stirrups, and specially shaped bars, providing a one-stop solution for the production of various rebar components used in foundation, pile, and bridge projects.
The machine is particularly suitable for the batch production of stirrups from round steel bars. For processing large-diameter deformed rebar, it can be combined with a rebar bending center and a rebar sawing and threading production line to create a complete rebar processing system that covers multiple processing requirements.
Summary of Industry Applications
Currently, the global infrastructure market is moving toward greater standardization and automation. Engineering project buyers are no longer focused solely on equipment price. They are placing greater emphasis on equipment stability, processing accuracy, automation capabilities, and the manufacturer's after-sales service and technical support.
Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in rebar processing equipment and has continuously optimized the mechanical structure and control system of its CNC rebar straightening, cutting, and bending machine. With extensive experience in equipment development, manufacturing, and overseas service, Xuhui provides reliable rebar processing solutions for customers worldwide.
As quality requirements for rebar components in global infrastructure projects continue to increase, demand for CNC integrated rebar processing equipment is also expected to grow. Xuhui (Shandong) Intelligent Equipment Co., Ltd. will continue to optimize its products and technologies, providing reliable equipment and solutions to support the efficient development of infrastructure projects in China and overseas.
